Anaconda Multiflex FCCN

FCCN is a galvanised steelGalvanised steel is a zinc coated metal that provides customers with better resistance to corrosive environments. More square locked conduitA conduit is a gateway in which electrical wires or other items can pass through. More. This general purpose conduit is very flexible and has many applications in industrial applications, construction, underfloor wiring systems and industrial machines.

Ask a question

Download PDF

Matching fittings

Construction
FCCN convoluted metal core conduit without cover
Temperature
-55 °C till +300 °C
Colour
Metal
Compression resistance
4 (1250N)
Impact resistance
4 (6J)
Tensile strength
3 (500N)
Protection class
IP 40

Size	Diameter		Bending radius		Standard carton		Small carton		Reels		Weight
	Inside	Outside	Static	Dynamic	Metre	Article No	Metre	Article No	Metre	Article No	(Kg/m)
	(mm)	(mm)	(mm)	(mm)
10	7,0	9,0	20	30	-	-	-	-	50	302.610.5	0,008
12	10,0	13,0	30	45	-	-	-	-	50	302.612.5	0,13
16	13,0	16,0	45	60	-	-	-	-	50	302.616.5	0,15
20	17,0	20,5	50	70	30	302.620.3	10	302.620.1	50	302.620.5	0,20
25	21,2	25,0	60	80	30	302.625.3	10	302.625.1	50	302.625.5	0,26
32	28,1	32,0	70	90	30	302.632.3	10	302.632.1	50	302.632.5	0,33
40	37,7	43,0	90	120	30	302.640.3	10	302.640.1	-	-	0,52
50	48,4	54,0	110	140	30	302.650.3	10	302.650.1	-	-	0,64

Matching fittings

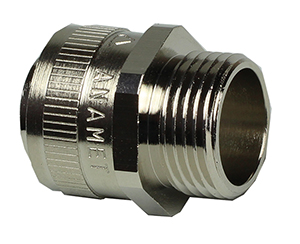

Anaconda Multiflex FCCN/FCEN 2 Piece
ISO metric IP 40 straight fitting, fixed, male, nickel plated brass

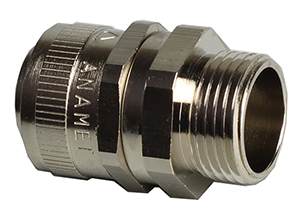

Anaconda Multiflex FCCN/FCEN 2 Piece
ISO metric IP 40 straight fitting, swivel, male, nickel plated brass

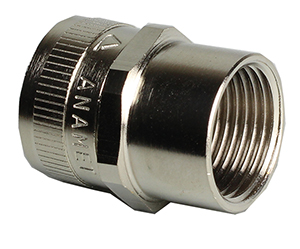

Anaconda Multiflex FCCN/FCEN 2 Piece
ISO metric IP 40 straight fitting, fixed, female, nickel plated brass

Anaconda Multiflex FCCN/FCEN 2 Piece
PG IP 40 straight fitting, fixed, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN 2 Piece
PG IP 40 straight fitting, swivel, male, nickel plated brass

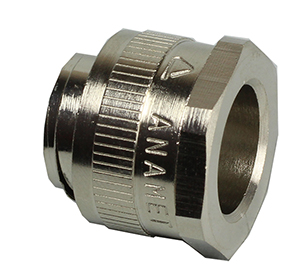

Anaconda Multiflex FCCN/FCEN 2 Piece
IP 40 box connector, fixed, nickel plated brass

Anaconda Multiflex FCCN/FCEN
End cap, nickel plated brass

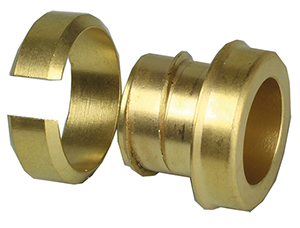

Anaconda Multiflex FCCN/FCEN Compact
IP 40 connection set, passivated brass

Anaconda Multiflex FCCN/FCEN Compact ISO Straight
ISO metric IP 40 straight fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
ISO metric IP 40 (IP 68 on the switchbox) cable-hose fitting, male, double layer EPDM seal, nickel plated brass (EPDM seal acc. EN 45545-2, HL1 / HL2 / HL3, table R22 and R23)

Anaconda Multiflex FCCN/FCEN Standard
ISO metric IP 40 straight fitting, swivel, male, nickel plated brass

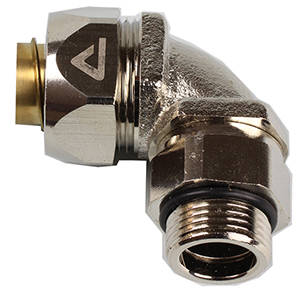

Anaconda Multiflex FCCN/FCEN Compact
ISO metric IP 40 90° elbow fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Standard
ISO metric IP 40 90° elbow swivel fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
PG IP 40 straight fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
PG IP 40 90° elbow fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
NPT IP40 straight fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
NPT IP 40 90° elbow fitting, male, nickel plated brass

Anaconda Multiflex FCCN/FCEN Compact
IP 40 conduit connector, nickel plated brass
